Industrial Unmanaged 5 Ports Gigabit PoE Switch 802.3at/bt 120W Voltage Booster 12-56V DC

Name: Industrial Unmanaged 5 Ports Gigabit PoE Switch 802.3at/bt 120W Voltage Booster 12-56V DC
Price: 39 USD
Availability: InStock

Model:WXA-I05G-FP120

5×10/100/1000T RJ45

802.3 at 30W PoE

12-56VDC Voltage Booster

Original price was: $59.00.Current price is: $39.00.

5 x 10/100/1000BASE-T RJ45 ports with auto-MDI/MDI-X; Ports 1-4 support IEEE 802.3at PoE+ Injector

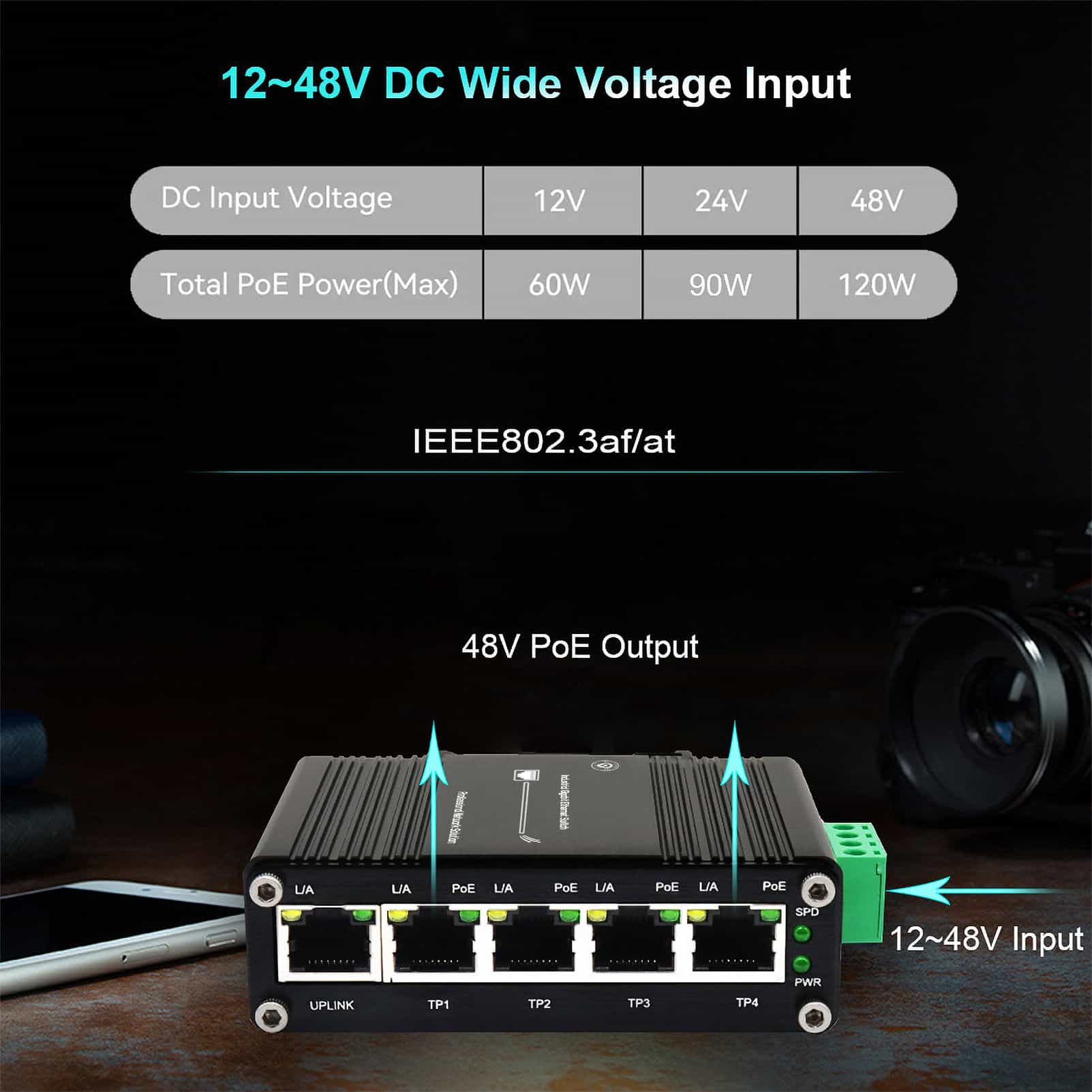

12~48VDC wide range power input
PoE budget: Up to 120W (48VDC) / 90W (24VDC) / 60W (12VDC) Supports 802.3x Flow control
Supports DIN-Rail and Wall-mount installation
Industrial-grade design with IP40 dustproof protection and rugged high-strength metal case
Operating temperature: -40°C to 80°C (-40°F to 176°F)

Standards	IEEE 802.3/802.3u/802.3ab/802.3x/802.3az/802.3af/at (PoE+ PSE)
Forward Rate (10Mbps)	14,880 pps
Forward Rate (100Mbps)	148,800 pps
Forward Rate (1000Mbps)	1,488,000 pps
Switch Fabric	10Gbps non-blocking
Backplane	20Gbps
Forwarding Rate	14.88Mpps
Packet Buffer	1Mbits
Packet Length	10Kbytes
MAC Table	8K entries
Connector (RJ45)	5x 10/100/1000Base-T RJ45 (auto-MDI/MDI-X)
PoE Injector Ports	Ports1-4: 802.3at PoE+ injector
PoE Standard	IEEE 802.3af/at
PoE Pin Assignment	4/5(+), 7/8(-)
PoE Budget (48V)	120W
PoE Budget (24V)	90W
PoE Budget (12V)	60W
Operating Temperature	-40°C~80°C (-40°F~176°F)
Storage Temperature	-40°C~85°C (-40°F~185°F)
Humidity	5%~95% non-condensing
MTBF	>200,000 hrs
Input Power	12~48VDC (Terminal Block)
Power Consumption (Total)	<125W
Power Consumption (Non-PoE)	<6W
Overload Protection	Auto Resettable
Reverse Polarity Protection	Present
Dimensions	95×70×29mm
Weight	0.25Kg
Case Material	Aluminum Case
Mounting	DIN-Rail/Wall-mount
LED Indicators (PWR)	Power
LED Indicators (L/A)	Link/Activity
LED Indicators (PoE)	Status
Certifications	ISO9001
EMI	EN55022:2010+AC:2011 Class A, EN61000-3-2/3:2006+A1+A2/2013, EN55032:2017
EMS	IEC 61000-4-2/3/4/5/6/8
