Rugged Industrial 5-port Gigabit Ethernet Switch
Model:WXA-I05G
4×10/100/1000T RJ45
1×10/100/1000M Uplink
12-48VDC
Original price was: $39.00.$19.00Current price is: $19.00.
WXA-I05G is a Mini Industrial 5-Port 10/100/1000T Gigabit Ethernet Switch features a 12~48VDC wide-range power input. In addition, as an unmanaged industrial Ethernet switch, it adheres to key industrial standards, boasting reliable and user-friendly operation, robust vibration and shock resistance, and an extended operating temperature range—thus enabling seamless adaptation to diverse harsh industrial environments.
Furthermore, compliant with CE and FCC certifications, the switch undergoes 100% burn-in testing to guarantee consistent performance in industrial applications. As a result, it serves as a cost-effective solution for industrial Ethernet connectivity needs.
- 5 x 10/100/1000BASE-T RJ45 ports with auto-MDI/MDI-X
- 12~48VDC wide range power input
- Supports DIN-Rail and Wall-mount installation
- Industrial-grade design with IP40 dustproof protection and rugged high-strength metal case
- Operating temperature: -40°C to 80°C (-40°F to 176°F)
|
Standards
|
IEEE 802.3/802.3u/802.3ab/802.3x/802.3az
|
|
Forward Rate (10Mbps)
|
14,880 pps
|
|
Forward Rate (100Mbps)
|
148,800 pps
|
|
Forward Rate (1000Mbps)
|
1,488,000 pps
|
|
Switch Fabric
|
10Gbps non-blocking
|
|
Backplane
|
20Gbps
|
|
Forwarding Rate
|
14.88Mpps
|
|
Packet Buffer
|
1Mbits
|
|
Packet Length
|
10Kbytes
|
|
MAC Table
|
8K entries
|
|
Connector (RJ45)
|
5x 10/100/1000Base-T RJ45 (auto-MDI/MDI-X)
|
|
Operating Temperature
|
-40°C~80°C (-40°F~176°F)
|
|
Storage Temperature
|
-40°C~85°C (-40°F~185°F)
|
|
Humidity
|
5%~95% non-condensing
|
|
MTBF
|
>200,000 hrs
|
|
Input Power
|

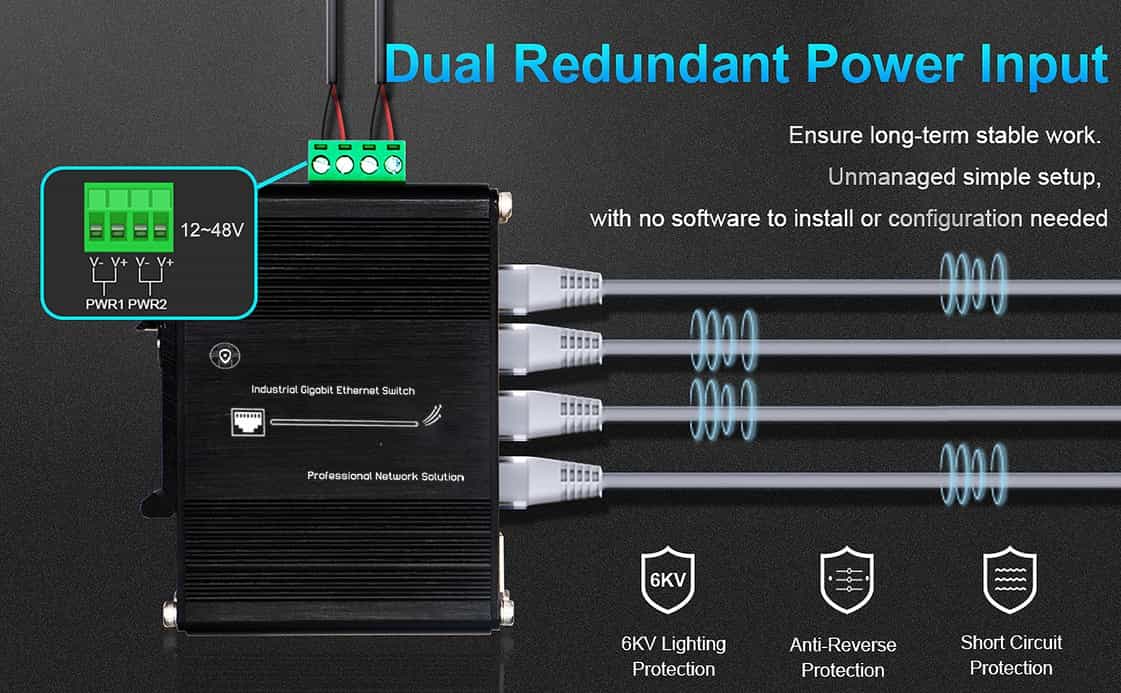

12~48VDC (Terminal Block)
|
|
Power Consumption (Non-PoE)
|
<6W
|
|
Overload Protection
|
Auto Resettable
|
|
Reverse Polarity Protection
|
Present
|
|
Dimensions
|

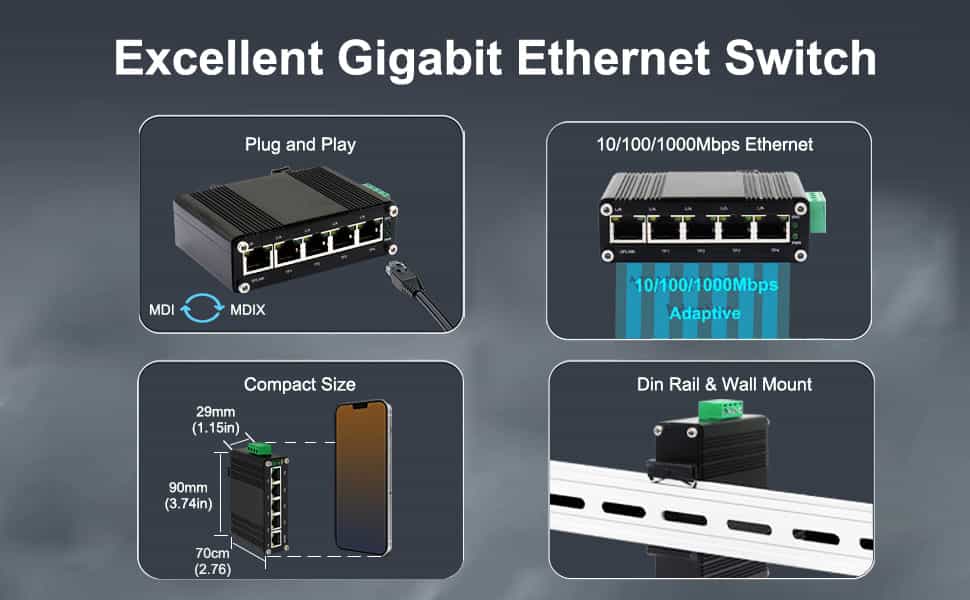

95×70×29mm
|
|
Weight
|
0.25Kg
|
|
Case Material
|
Aluminum Case
|
|
Mounting
|
DIN-Rail/Wall-mount
|
|

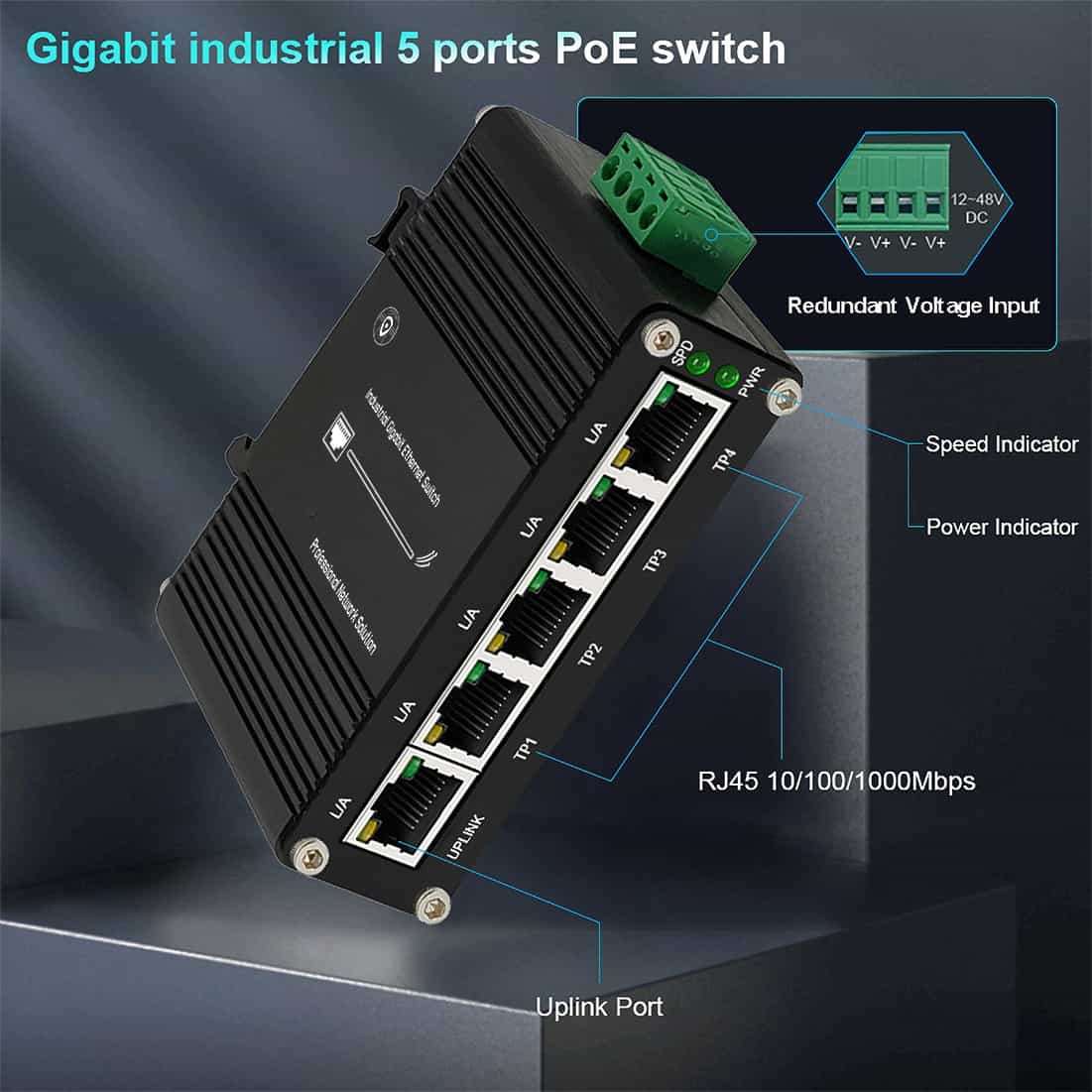

LED Indicators (PWR)
|
Power
|
|
LED Indicators (L/A)
|
Link/Activity
|
|
LED Indicators (PoE)
|
Status
|
|
Certifications
|
ISO9001
|
|
EMI
|
EN55022:2010+AC:2011 Class A, EN61000-3-2/3:2006+A1+A2/2013, EN55032:2017
|
|
EMS
|
IEC 61000-4-2/3/4/5/6/8
|
