Rugged Industrial 10-port RJ45 Gigabit PoE Switch
Model:WXA-I010G-P240
8×10/100/1000T RJ45
802.3 at 30W PoE
2×10/100/1000M Uplink
12-48VDC Voltage Booster
Original price was: $75.00.$49.00Current price is: $49.00.
This Mini Industrial 8-Port 10/100/1000T Gigabit PoE Switch features a 12~48VDC wide-range power input. In addition, as an unmanaged industrial Ethernet switch, it adheres to key industrial standards, boasting reliable and user-friendly operation, robust vibration and shock resistance, and an extended operating temperature range—thus enabling seamless adaptation to diverse harsh industrial environments.
Furthermore, compliant with CE and FCC certifications, the switch undergoes 100% burn-in testing to guarantee consistent performance in industrial applications. As a result, it serves as a cost-effective solution for industrial Ethernet connectivity needs.

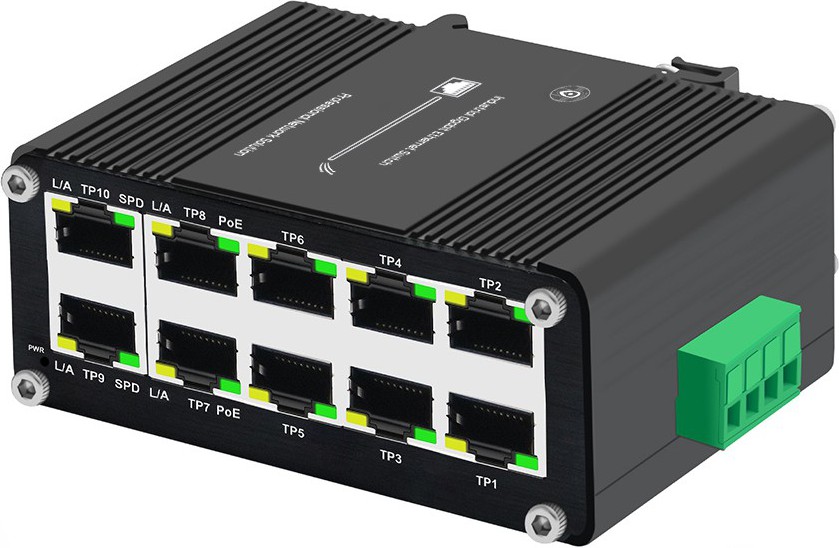

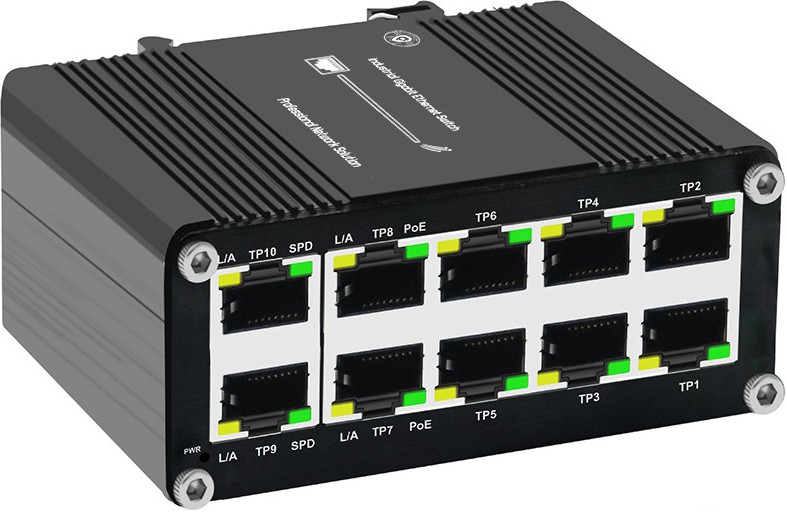

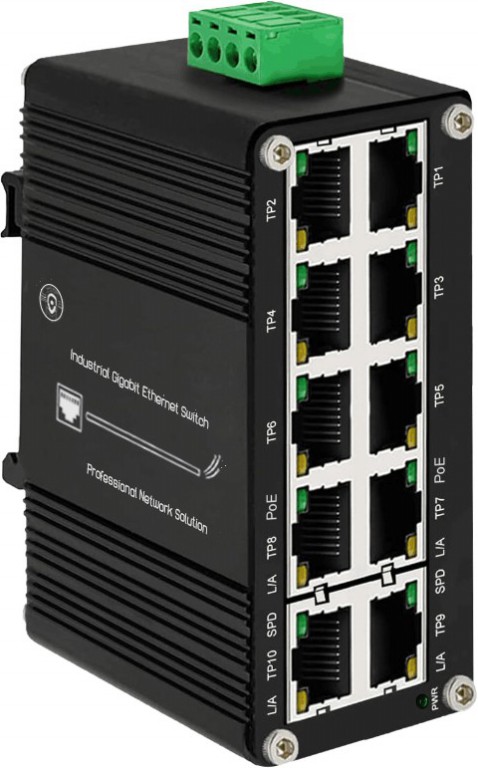

- 10 x 10/100/1000BASE-T Gigabit Ethernet RJ45 Copper Ports

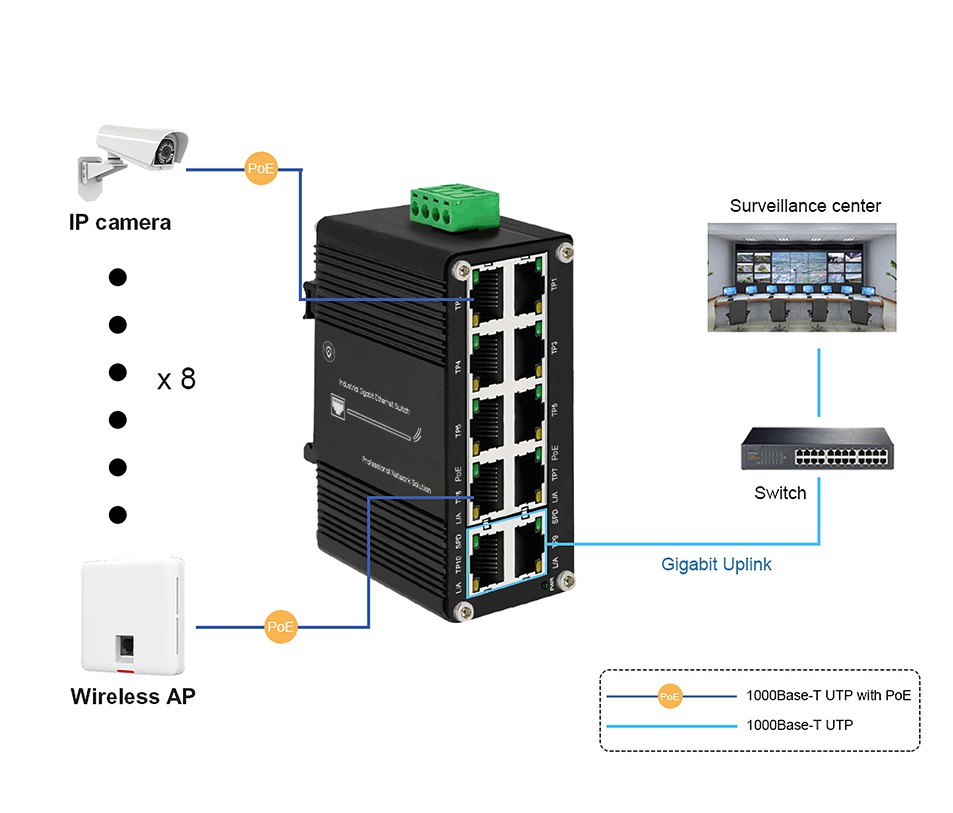

- Powers up to 8 IEEE 802.3af/at-Compliant Devices
- 240-Watt Total PoE Budget
- 12~48V DC Redundant Power with Reverse Polarity Protection
- Supports IEEE 802.3x Flow Control
- Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)

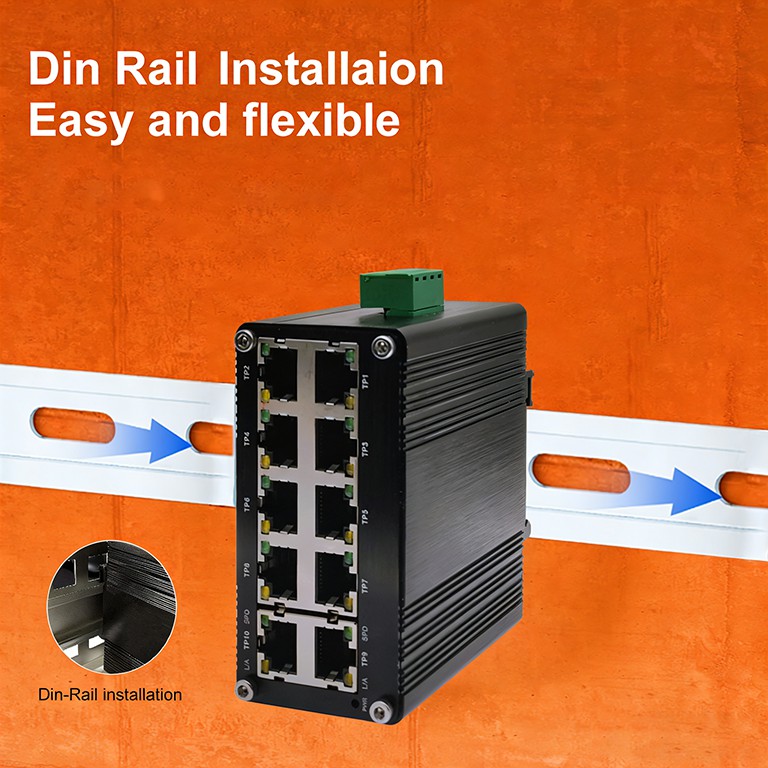

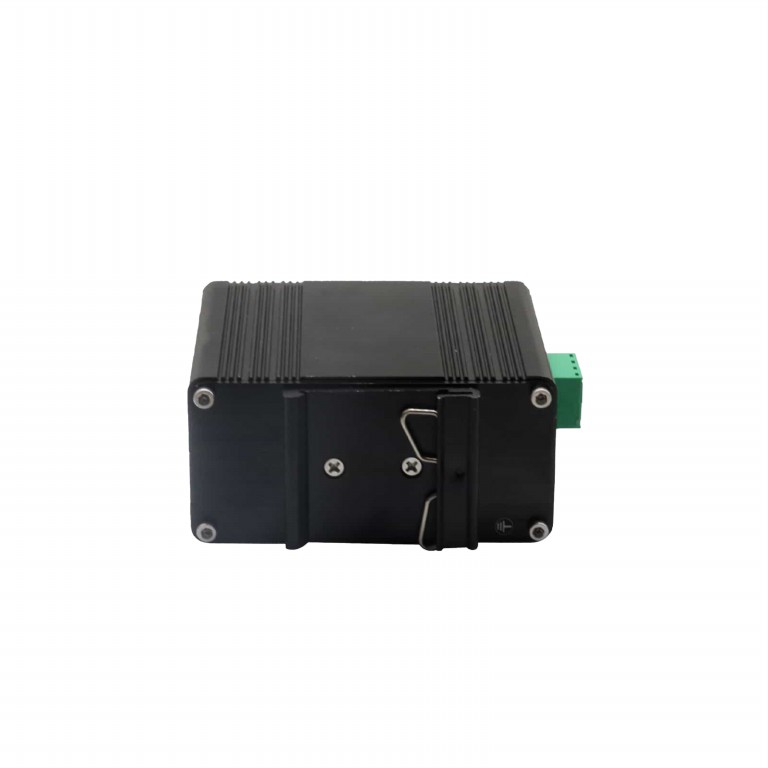

- Supports DIN-Rail Installation
- IP40-Rated Dustproof, Enclosed Design | Rugged High-Strength Metal Housing (Industry-Standard)
- Operating Temperature: -40°C to 80°C (-40°F to 176°F)
|
Standards
|
IEEE 802.3/802.3u/802.3ab/802.3x/802.3az (EEE)
|
|
Forward Rate (10Mbps)
|
14,880 pps
|
|
Forward Rate (100Mbps)
|
148,800 pps
|
|
Forward Rate (1000Mbps)
|
1,488,000 pps
|
|
Throughput
|
14.88Mpps@64bytes
|
|
Packet Buffer
|
2Mbits
|
|
Packet Length
|
9216bytes
|
|
MAC Table
|
4K entries
|
|
Switch Fabric
|
20Gbps non-blocking
|
|
Connector (RJ45)
|
10x 10/100/1000Base-T RJ45 (auto-MDI/MDI-X)
|
|
PoE Injector Ports
|
Ports1-8: 802.3at PoE+ injector
|
|
PoE Standard
|
IEEE 802.3af/at (PoE/PSE)
|
|
PoE Pin Assignment
|
4/5(+), 7/8(-)
|
|
PoE Budget (48V)
|
120W
|
|
PoE Budget (24V)
|
90W
|
|
PoE Budget (12V)
|
60W
|
|
Max Class 4 PDs
|
8 units
|
|
Operating Temperature
|
-40°C~80°C (-40°F~176°F)
|
|
Storage Temperature
|
-40°C~85°C (-40°F~185°F)
|
|
Humidity
|
5%~95% non-condensing
|
|
MTBF
|
>100,000 hrs
|
|
Input Power
|
12~48VDC (redundant + reverse polarity protection)
|
|
Power Consumption (Total)
|
<250W
|
|
Power Consumption (Non-PoE)
|
<10W
|
|
Overload Protection
|
Automatic Resettable
|
|
Reverse Polarity Protection
|
Present
|
|
Dimensions
|
95×88×46mm
|
|
Weight
|
400g
|
|
Case Material
|
Aluminum Case
|
|
Mounting
|
DIN-Rail mount
|
|
LED Indicators (PWR)
|
Power
|
|
LED Indicators (L/A)
|
Link/Activity
|
|
LED Indicators (SPD)
|
Data Rate
|
|
LED Indicators (PoE)
|
Status
|
|
EMC/EMI/Safety (CE)
|
EN55032/EN55035/EN60950-1
|
|
EMC/EMI/Safety (FCC)
|
FCC Part 15 Subpart B
|
|
EMS
|
EN61000-4-2/3/4/5/6/8/11
|
|
Surge Protection
|
8KV (PoE/RJ45/SFP ports)
|
|
Mechanical Reliability
|
IEC60068-2-27 (Shock)/32 (Freefall)/6 (Vibration)
|
